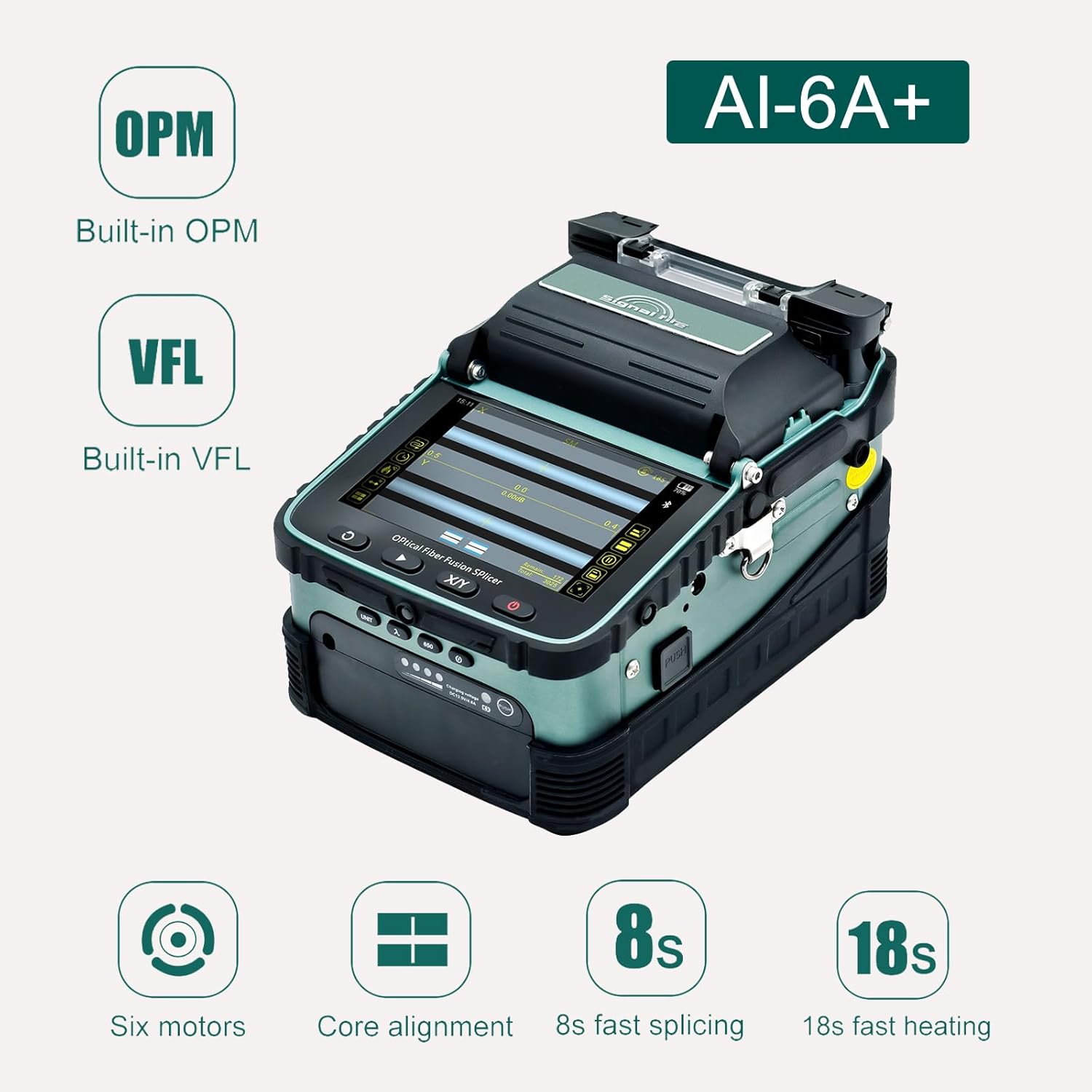

Signal fire AI-6A+ Fusion Splicing Six Motor Core Alignment Fiber Fusion Splicer with OPM and VFL, Automatic FTTH Fiber Optical Welding Splicing Machine Splicing 8S Heating 18S

Specifications

• 【Faster Splicing & Heating】- The fusion splicing machine uses a powerful high-speed motor that allows fast 8 second splice time and 18 second heat time, continuous splice and heats about 160 times. And it saving engineers time.
• 【Built-In Power Meter & VFL】- Using the core alignment technology which is more precise and less splicing loss. Effectively measure connection loss,verify continuity and help assess fiber link transmission quality. OPM can be switched between ten states, wavelength of 850nm， 1300nm,1310nm,1490nm,1550nm,1625nm,980nm,1270nm,1577nm,1650nm. VFL can be switched between three states, power: 15mW, 2Hz flashing and steady on mode.
• 【3-in-1 Fiber Holder】- 3 In 1 Fiber Holder suit for SM/G.652、BIF (G.657), bare fiber, pigtail, rubber-insulated, multi fiber cable; Splice Loss: 0.02dB (SM) 、0. 01dB (MM) 0. 04dB (DS/NZDS).
• 【Clear LCD & Long Time Standby】- With 5-inch high-resolution screen, it is up to 320 times the focus magnifications when X/Y Axis displayed separately, 200 times focused magnifications when X and Y Axis Displayed Simultaneously. 5200 mah high-capacity lithium battery, charging time ≤ 3 hours, continuous splicing and heating about 160 times.
• 【Intelligent Interaction】- This splicing heating machine can be connected to mobile app, eleven different languages can be switched like English, French, Russia, Italian, Portuguese, polish, Spanish etc which is convenient for customers to use. You can check the data by your mobile phone and downloaded or output at any time, also the splicing records can be stored indefinitely.
