Signal fire New Model AI-9 Fusion Splicing Six Motor Core Alignment Fiber Fusion Splicer Automatic FTTH Fiber Optical Welding Splicing 5S Heating 15S

Specifications

• 【Faster Splicing & Heating】- The AI-9 fusion splicing machine uses a powerful high-speed motor that allows fast 5S splice and 15S heat, continuous splice and heats about 260 times. The UPGRADED TRANSPARENT HEATING SLOT has the function of heating part automatic lid closing, also it is compatible with SC fiber optic. Newly added cooling disc facilitates the simultaneous fusion of multiple sets of optical fibers.
• 【Built-In Power Meter & VFL】- Using the core alignment technology which is more precise and less splicing loss. Effectively measure connection loss,verify continuity and help assess fiber link transmission quality. OPM can be switched between six states, wavelength of 850nm， 1300nm,1310nm,1490nm,1550nm,1625nm. VFL can be switched between three states, power: 15mW, 2Hz flashing and steady on mode.
• 【3-in-1 Fiber Holder】- 3 In 1 Fiber Holder suit for single-mode fiber (SMF/G 652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, skin fber, jumper, invisible fiber fusion; Splice Loss: 0.02dB (SM),0.01dB (MM),0. 04dB (DS/NZDS). The cladding diameter 80-150μm.

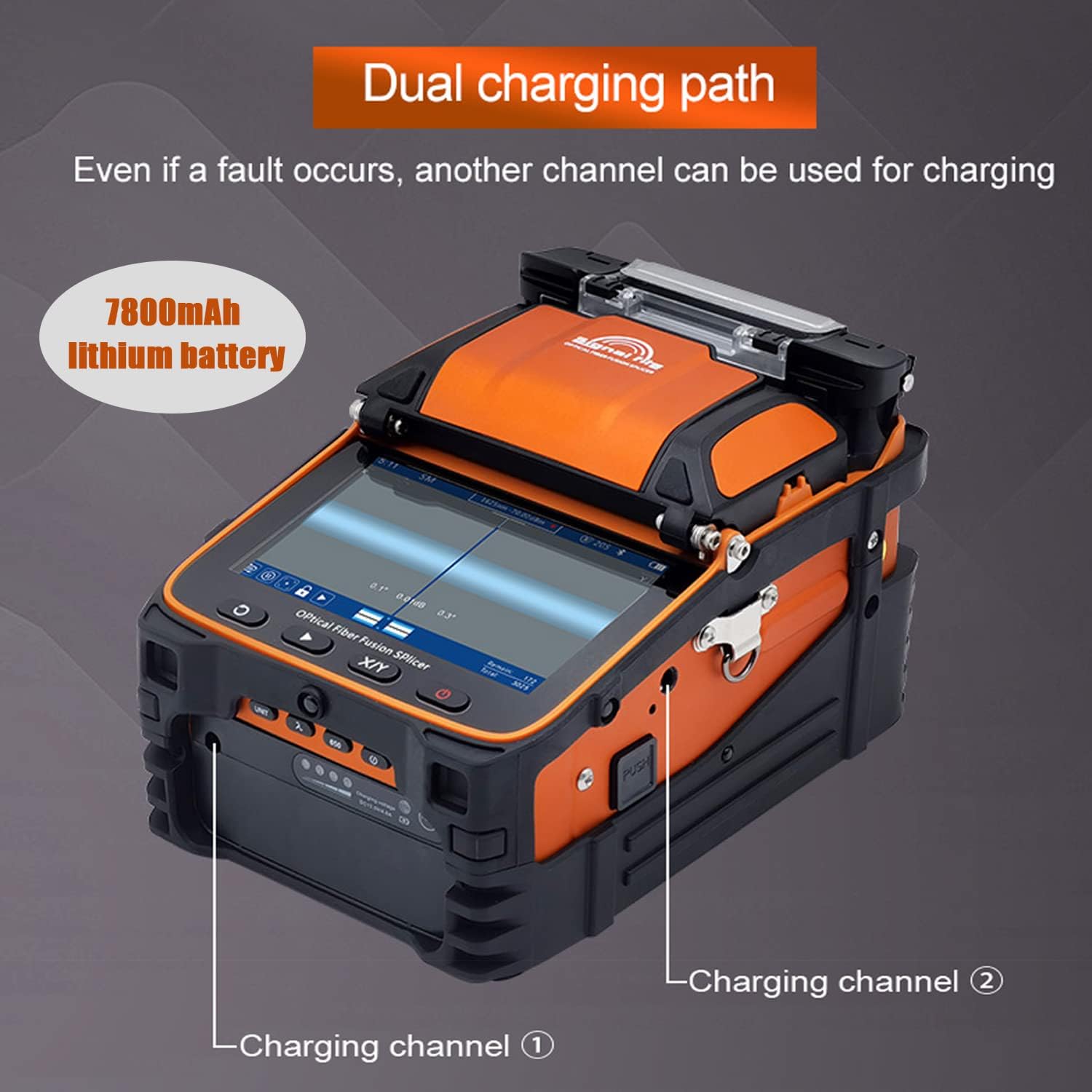

• 【Clear LCD & Long Time Standby】- With 5-inch high resolution screen, it is up to 300 times the focus magnifications when X/Y Axis displayed separately, 150 times focused magnifications when X/Y Axis displayed simultaneously. 7800 mAh high-capacity lithium battery charging ≤ 3.5 hours.
• 【Intelligent Interaction】- This splicing heating machine can be connected to mobile app, ten different languages can be switched like English, French, Russia, Italian, Portuguese, polish, Spanish, Thai, Arabic which is convenient for customers to use. You can check the data by your mobile phone and downloaded or output at any time, also the splicing records can be stored"
